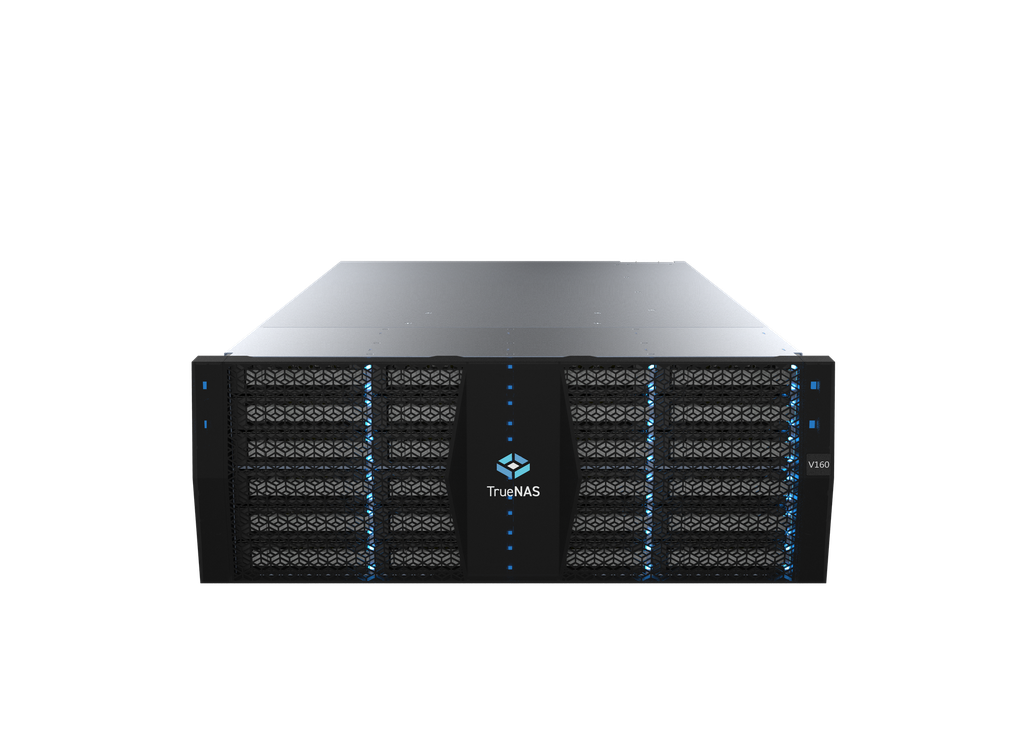

TrueNAS V-Series - High-End Hybrid and All-Flash Enterprise Storage
The TrueNAS V-Series delivers high-end enterprise storage in Hybrid Flash and All-Flash configurations. Hybrid Flash scales to 35 PB of raw capacity with dense HDD and NVMe acceleration. All-Flash pushes up to 60 GB/s for latency-sensitive workloads. Dual-controller HA and 400 GbE networking support demanding databases, virtualization, AI and HPC pipelines, and large-scale archive.
Key Specifications
| Max Capacity | 35 PB raw (Hybrid Flash) / 20 PB raw (All Flash) |
| Max Throughput | 30 GB/s (Hybrid Flash) / 60 GB/s (All Flash) |
| Appliance Height | 4U |
| Max Expansion Shelves | 14x ES102 (Hybrid Flash) / 6x ES24N (All Flash) |
| All-NVMe Flash Capacity | 8 PB raw NVMe (Hybrid Flash) / 20 PB raw NVMe (All Flash) |
| High Availability | Yes - Dual Controllers (32 Core / 64 Threads) |
| Networking | 2x 10/25/40/100/200 GbE plus 1x 400 GbE |
| Storage Type | Hybrid Flash or All-Flash |
| File System | OpenZFS |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
Built for the Enterprise
High-End Performance and Scale
Up to 35 PB of raw capacity and 60 GB/s throughput. The V-Series is engineered for the largest and most demanding enterprise workloads, scaling well beyond the H-Series while keeping simple management.
Dual-Controller High Availability
Dual controllers provide high availability for uninterrupted operations. If one controller fails, the other takes over to keep data accessible and applications running.
Hybrid Flash or All Flash
Choose Hybrid Flash for dense capacity with NVMe acceleration, or All Flash for maximum throughput and low latency. Both configurations share the same platform, so you can select the media profile that fits your workload.
Enterprise Data Protection
OpenZFS provides built-in checksumming, snapshots, replication, and self-healing to protect data integrity. Replicate to a central site for disaster recovery and unified management.
Why Flatiron Networks
Your Complete IT Partner
TrueNAS storage is just one piece of your infrastructure. Flatiron Networks partners with Dell, HPE, Fortinet, Palo Alto Networks, Veeam, and 20+ other vendors so we can architect and deliver a complete solution across compute, networking, security, and backup.
Full Lifecycle Services
From strategic planning and infrastructure design through hands-on deployment to 24/7 managed security monitoring, our team supports your environment at every stage. One partner, one point of contact.
Ready to Configure Your V-Series?
Contact Flatiron Networks for custom configuration, deployment services, and competitive pricing.
